What Is Concentricity Used for?

In Gd&T, Concentricity Is a Complex Tolerance Used to Establish a Tolerance Zone for the Median Points of a Cylindrical or Spherical Part Feature. Concentricity Is Generally Reserved for High-Precision Parts, and Only When There Is a Need to Control Median Points.

What Instrument Measures Concentricity?

The Measurement of Concentricity Can Be Done with a Dial Gauge or Cmm (Coordinate Measuring Machine) Through the Following Methods. It Is Mainly Used When the Distance Between the Measuring Element and the Datum Element Is Too Large, and They Are Both Thin-Walled.

How Is Concentricity Defined?

Please. Noun. 1. Concentricity - the Quality of Having the Same Center (As Circles Inside One Another)

What Is Difference Between Runout and Concentricity?

While Concentricity Looks at How Well a Cylindrical Feature Is Centered on a Theoretical Axis, Runout Looks at How Much the Feature Deviates from a Perfect Circle That Is Perfectly Centered on an Axis of Rotation.

How Is Concentricity Calculated?

Use the Following Formula in the Diagram to Calculate the Concentricity: C = Wmin/Wmax --- 100%. Wmin Is the Minimum Width. Wmax Is the Maximum Width. C Is a Percent.

How Do You Measure Concentricity Manually?

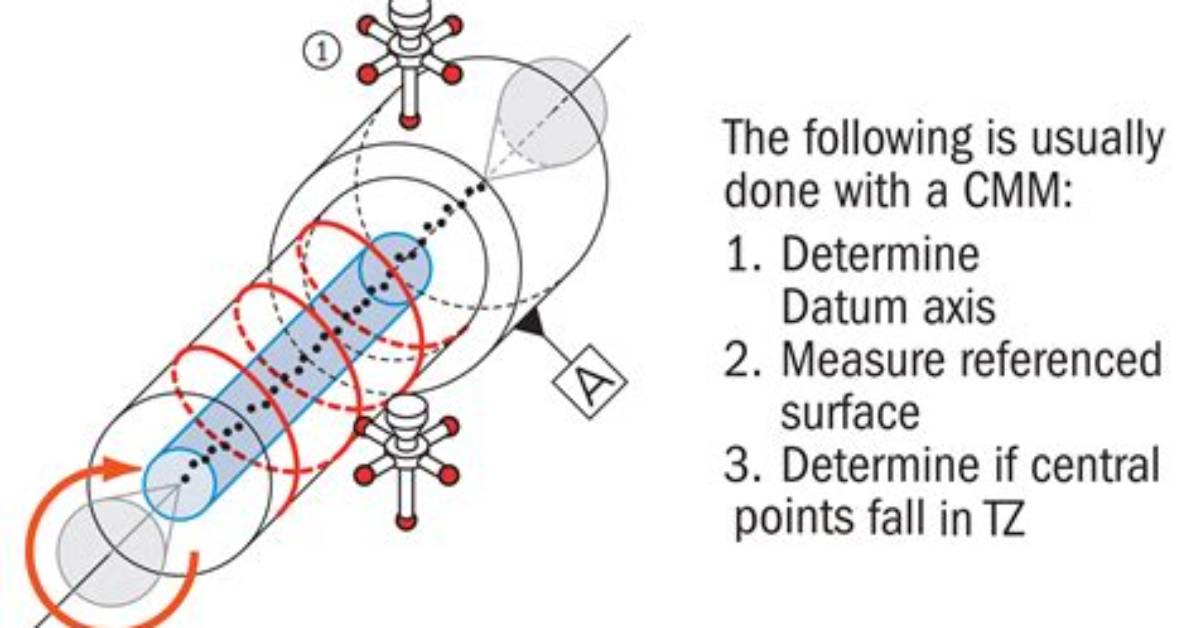

Using a Coordinate Measuring Machine (Cmm)

What Can I Use Instead of Concentricity?

In Fact, in Most Cases, the Use of Runout or Position Should Replace the Need for Concentricity and Be Much Easier to Measure.

What Does Concentricity Mean in Machining?

Concentricity Is the Tolerance That Controls the Central Axis of the Referenced Feature to a Datum Axis. the Axes for the Referenced Feature and Datum Are Derived from the Center Point of the Part.

Is Concentricity the Same as True Position?

: For Concentricity, the Locations of the Midpoints of Diametrically Opposed Feature Elements Are Controlled Relative to the Axis of the Datum Feature. Concentricity Can Only Be Used on a Rfs Basis, So It Is More Stricter Then True Position.

What Is the Difference Between Concentricity and Eccentricity?

Eccentricity Is the Measure of Elongation of a Conic Section. Concentricity Is the Measure of Alignment of Two or More Shapes on the Same Axis.

What Is the Difference Between Concentricity and Symmetry?

The Concentricity Tolerance Is Often Used to Accurately Control Balance for High-Speed Rotating Parts. Symmetry Is That Condition Where the Median Points of All Opposed or Correspondingly Located Points of Two or More Feature Surfaces Are Congruent with the Axis or Center Plane of a Datum Feature.

What Is Difference Between Circularity and Runout?

Circularity Is How Round a Shaft Is. Runout Is a Measurement of How Close the Spinning Axis Is to It's Centre Line.

Why Concentricity and Symmetry Are Removed?

“Two Past Practices, Use of Concentricity and Use of Symmetry, Have Been Eliminated Because Other Characteristics Provide More Direct Control of Features and Establish Requirements That Have a Well-Defined Meaning.

What Is Meant by Concentricity of Circle?

Concentricity Refers to the Quality or Characteristic of Different Circles Having a Common Center.

What Does Cylindricity Mean?

Cylindricity Is a 3 Dimensional Analysis of Form: It Attempts to Combine the Characteristics of Axial Form, Radial Form and Overall Shape by the Use of Best Fit Cylinders.

How Do You Check Circularity?

Two-Point Measurement Is Performed on the Outer Form by Dividing It into Four to Eight Sections. the Roundness Is the Value Obtained by Dividing the Difference Between the Maximum and Minimum Values by 2. a Micrometer Is All That Is Needed for Measurement; You Can Take Measurements Easily, Anywhere.

How Is Concentricity Tolerance Defined?

Concentricity Is a 3-Dimensional Cylindrical Tolerance Zone That Is Defined by a Datum Axis Where All the Derived Median Points of a Referenced Circular Feature Must Fall Into. the Median Points of the Reference Surface Cross Sections Form the Theoretical Axis That Must Be in This Tolerance Zone.

What Is Cylindricity and Circularity?

While Circularity Only Is Concerned with Individual Measurements Around the Surface in One Circle, Cylindricity Takes into Account How Straight the Axial Portion of the Cylinder Is. Thinking of Stack of Coins, Cylindricity Would Measure to Make Sure That the Entire Stack Is Straight up and That Every Coin Is Round.

What Is the Difference Between Circularity and Roundness?

Roundness Is Independent of Any Datum Feature and Only Is Always Less Than the Diameter Dimensional Tolerance of the Part. Circularity Essentially Makes a Cross-Section of a Cylindrical or Round Feature and Determines If the Circle Formed in That Cross-Section Is Round.

What Is Circularity Metrology?

Metrology Terminology: What Is Roundness? Roundness, or Circularity, Is the 2D Tolerance That Controls How Closely a Cross-Section of a Cylinder, Sphere, or Cone Is to a Mathematically Perfect Circle. Consider a Cylinder Whose Purpose Is to Roll Along a Flat Surface.

What Is Eccentricity Gd&T?

Eccentricity – Eccentricity Is the Center of One Feature to the Center of Another. Eccentricity Is One Half of A. Concentricity Tolerance Zone.

What Is the Difference Between Tir and Concentricity?

Concentricity Is the Relationship of Two or More Circles or Circular Surfaces Having a Common Center. It Is Designated at Tir (Total Indicator Reading) and Is the Total Movement of the Hand of an Indicator Set to Record the Amount That a Surface Varies from Being Concentric.

What Is Circularity Shape?

Roundness Is the Measure of How Closely the Shape of an Object Approaches That of a Mathematically Perfect Circle. Roundness Applies in Two Dimensions, Such as the Cross Sectional Circles Along a Cylindrical Object Such as a Shaft or a Cylindrical Roller for a Bearing.

What Is Concentricity Measurement?

By Elena Rostova

• Oct 8, 2026 • 5 min read

Direct Answer • Key Takeaway

When Measuring Concentricity, You Are Checking the Accuracy of the Coaxiality of the Axes of Two Cylinders, That the Center Points Match. Unlike Coaxiality, the Datum Is the Center Point (Plane).
