How Do You Calculate Nominal Cover?

Calculation of Nominal Concrete Cover

Is Nominal Cover Same as Clear Cover?

1) Nominal Cover (Concrete Cover or Clear Cover) Can Be Defined as “Is the Design Depth of Concrete Cover to All Steel Reinforcements, Including Links”. This Is the Same Thing as Clear Cover Albeit with a Different Name. Categories: Civil Engineering.

What Is Nominal Cover in Concrete?

Nominal Concrete Cover (Clear Cover) Can Be Defined as the Distance from the Outer Surface of the Concrete Members to the Outer Surface of Steel (Either Main Reinforcement or Stirrups) Reinforcements, Including Links.

Why Is Nominal Cover Provided?

Function and Importance of Nominal Cover of Concrete Are Following: - 1) Nominal Cover of Concrete Provide and Maintain Long Lasting Life of Concrete, 2) It Keep Reinforcement Free from Corrosion and Rust Formation and Prevent from Damaging Due to Moisture Condition in Environment and in Soil, 3) Outer Face of Concrete. ..

Can Nominal Cover Be Less Than Diameter of Bar?

As per Is 456:2000 (Clause 26.4. 1), the Term Clear Cover Is Followed by Nominal Cover. the Nominal Cover Is the Distance Measured Between the Exposed Concrete Face and the Nearest Steel Reinforcement, Even Links ( Column Ties or Shear Stirrups). It Should Not Be Less Than the Bar Diameter in Any Condition.

What Is Effective Cover of Beam?

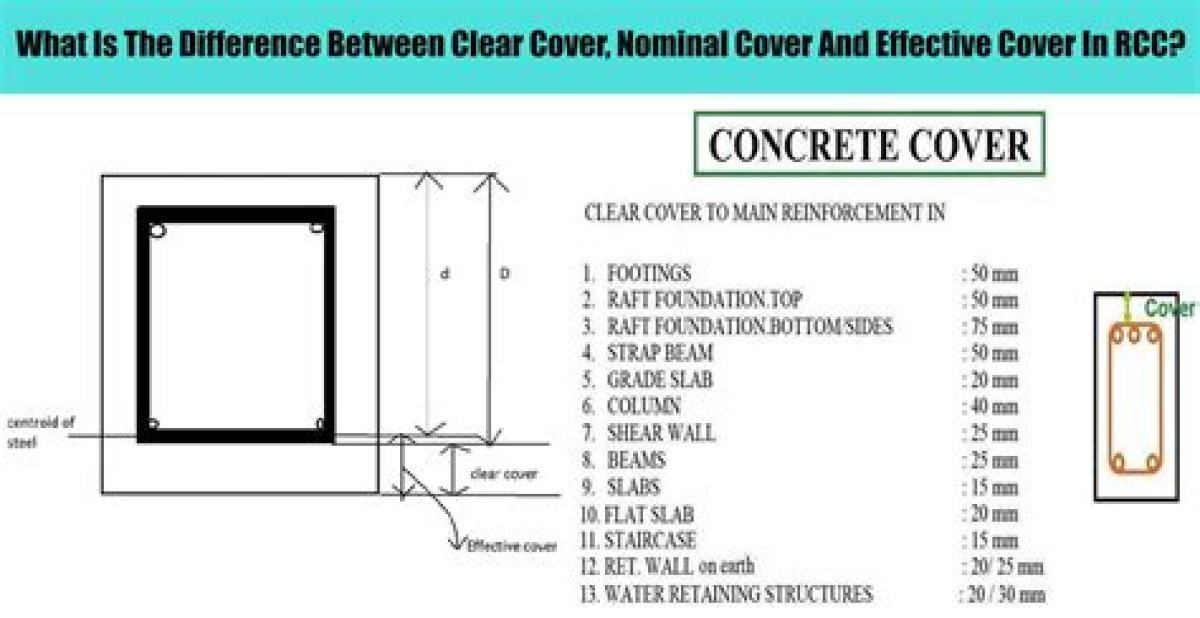

Effective Cover Is the Distance Measured from the Face of the Member to the Center of Area(Centroid) of the Main Reinforcement. This Is the Dimension Mostly Used for Design Calculation. Effective Cover = Clear Cover + Dia of Stirrups/ Links + 0.5 X Dia of Main Reinforcement Bar.

What Is Nominal Reinforcement in a Slab?

The Minimum Percentage of Reinforcement Is 0.12% of the Gross Cross-Sectional Area If Hysd Bars(Fe 415) Are Used. the Minimum Percentage of Reinforcement Is 0.15% of the Gross Cross-Sectional Area If Mild Steel Bars Are Used.

What Is the Clear Cover for Foundation Slabs and Beams?

The Size of Clear Cover 40Mm Is Apply for Column, 25Mm for Beam,15 to 20 Mm for Slab, 15Mm for Staircase and 40 to 50Mm for Footing/Foundation.

The Concrete Cover Is the Distance Between the Surface of the Reinforcement Closest to the Nearest Concrete Surface (Including Links and Stirrups and Surface Reinforcement Where Relevant) and the Nearest Concrete Surface. the Nominal Cover Shall Be Specified on the Drawing. It Is Defined as: Cnom = Cmin + Δ Cdev.

What Is the Minimum Cover for Reinforced Concrete?

If Concrete Is Poured on a Layer of Lean Concrete, the Bottom Cover Maybe Reduced to 50 Mm. G) for Concrete Surfaces Exposed to the Weather or the Ground After Removal of Forms, Such as Retaining Walls, Grade Beams, Footing Sides and Top Etc. Cover Should Not Be Less Than 50 Mm.

What Is Modular Ratio?

Definition. Modular Ratio ( ) Is the Ratio of the Elastic Modulus of a Particular Material in a Cross-Section to the Elastic Modulus of the “Base” or the Reference Material.

How Many Reinforcements Are in a Slab?

Minimum Reinforcement in Slab as per Aci Code

What Is the Minimum of Hysd Bars in Case of Flat Slab?

Minimum Reinforcement Is 0.12% for Hysd Bars and 0.15% for Mild Steel Bars. the Diameter of Bar Generally Used in Slabs Are: 6 Mm, 8 Mm, 10 Mm, 12Mm and 16Mm. the Maximum Diameter of Bar Used in Slab Should Not Exceed 1/8 of the Total Thickness of Slab.

What Is Cover and Clear Cover?

Clear Cover Can Be Defined as the Distance from the Top of Beam to the Top of the Top of Reinforcement While Effective Cover Can Be Defined as the Distance from the Top of Beam to the Mid of the Reinforcement.

Maximum Permissible Stress in Steel =Σst. Maximum Stress in Equivalent Concrete Area at the Level of Steel= \Frac{\Sigma _{St}}{M} Note: 1. the Suffix Cbc in Σcbc Stands for Permissible Stress in Concrete in Bending Compression. the Suffix St in Σst Stands for Permissible Stress in Steel in Tension.

What Is the Rcc Ratio?

The Ratio of Rcc 1:2:4 Means One Part of Cement by Volume, Two Parts of Fine Aggregate/Sand by Volume and Four Parts of Coarse Aggregate/Bajri by Volume.

How Many Reinforcements Are in a Beam?

Types of Reinforcement in Beams

What Is the Minimum Concrete Cover for Beams and Columns?

In Case of Columns of Minimum Dimension of 20 Cm or Under, Whose Reinforcing Bars Do No Not Exceed 12 Mm, Concrete Cover of 25 Mm to Be Used for Reinforcement. for Longitudinal Reinforcing Bars in a Beam, Not Less Than 30 Mm or Less Than the Diameter of the Bar.

What Is Real and Nominal?

Definition: the Nominal Value of a Good Is Its Value in Terms of Money. the Real Value Is Its Value in Terms of Some Other Good, Service, or Bundle of Goods.

What Is Nominal Length?

The "Nominal Length" of a Measure of Length Is the Length by Which That Measure Is Designated.

What Is a Nominal Quantity?

Nominal Quantity Means the Weight or Volume Indicated on Pre-Packaging and Corresponding to the Net Quantity Which This Pre-Packaging Is Deemed to Contain; Sample 1.

Why Clear Cover Is Provided in Beam?

Clear Cover Is Provided in All Rcc Structure Like Column, Beam, Footing, Foundation, Slab, Staircase and Retaining Wall for the Prevention of Reinforcement from Moisture, Chemical Attack, Entry of Moisture, Corrosion That Leads to Deterioration of Reinforcement, Make Insulation Against Fire and Sufficiently Embedding. ..

What Is Nominal Cover of Beam?

By James H. Sterling

• Oct 8, 2026 • 6 min read

Direct Answer • Key Takeaway

The Nominal Cover Is the Distance Between the Exposed Concrete Surface to Nearest Reinforcement Bar ( It May Be Any Bar Main Bar, Longitudinal Bar and Even Links or Stirrups). the Nominal Cover Should Not Be Less Than the Diameter of the Bar.
