What Is the Modular Ratio Used in Working Stress Method?

As per the Working Stress Design Method We Calculate Modular Ratio M by the Formulae M =280/3*Permissible Stress in Bending Compression.

Why Do We Use Modular Ratio?

The Value of of Stresses in Concrete and Steel Is Related Using Modular Ratio. as the Strain in the Reinforcing Steel and Concrete Is Linear in Nature. It Is Very Much Important to Consider the Value of Modular Ratio When We Want to Analyze the Composite Sections Like Reinforced Concrete Structures.

What Is Modular Ratio in Prestressed Concrete?

Modular Ratio in Rcc Is Defined as the Ratio Between Modulus of Elasticity of Steel and Modulus of Elasticity of Concrete (Es/Ec). Where Es Is the Modulus of Elasticity of Steel Which Is 2,00,000 N/Mm2. However Concrete Does Not Have a Definite Value of Modulus of Elasticity as It Is Not a Perfectly Elastic Material.

What Is the Modular Ratio to Be Used in the Analysis of Rc Beams Using Working Stress Method If Grade of Concrete Is M20?

Detailed Solution. This Value of the Modular Ratio Partially Takes into Account the Long-Term Effects of Creep. Σ C B C for M20 Is 7 Mpa and the Modular Ratio Comes out to Be 13.

Where Is Modular Ratio Used?

Modular Ratio Is Nothing but a Ratio of Modulus of Elasticity of Two Diffrent Materials. for Example in Rcc Steel and Concrete Are Used So Ratio of Es to Ec Is Modular Ratio.

What Is Modular Ratio?

Modular Ratio: in the Elastic Theory for the Reinforced Concrete Structure, Concrete and Reinforcing Steel Are Converted into One Material. This Is Done by Using the Modular Ratio 'M'. It Is the Ratio of Modulus of Elasticity of Steel and Concrete. M = E S E C.

Where Is Working Stress Method Used?

Working Stress Design Method Is a Method Used for the Reinforced Concrete Design Where Concrete Is Assumed as Elastic, Steel and Concrete Act Together Elastically Where the Relation Ship Between Loads and Stresses Is Linear.

What Is the Effect of Creep on Modular Ratio?

Long Term Modulus of Elasticity: the Long-Term Modulus of Elasticity Is Considered to Take into Account the Effect of Creep and Shrinkage. Where Σcbc Is Permissible Compressive Stress in Concrete in Bending. ∴ Modular Ratio Increases If the Creep Effect Is Considered.

Why Modular Ratio Is Not Used in Lsm?

The Real Strength of the Structure Is Not Completely Utilized by the Structure. This Won't Give the True Factor of Safety of the Structure When It Is Under Failure. the Modular Ratio Design Will End up Giving a Structure with a Large Percentage of Steel and Uneconomical Design.

Why Working Stress Method Is Uneconomical?

It Means, There Is No Provision for the Uncertainties Associated with the Estimation of Loads. (Iv) It Does Not Account for Shrinkage and Creep Which Are Time Dependent and Plastic in Nature. (V) This Method Gives Uneconomical Sections. (Vi) It Pays No Attention to the Conditions That Arise at the Time of Collapse.

Why Working Stress Method Is Used for Water Tank?

Working Stress Method Is Adopted as It Does Not Account for the Variation of Loads and the Design Is Mostly Conservative. Water Tanks Are More Vulnerable. as the Water Level in the Tank Is Incessantly Varying, There Is a Continuous Variation in the Pressure Inside.

What Is the Difference Between Working Stress Method and Limit State?

In Limit States Design, We Consider the Structure to Have Failed When It Reaches the Lower Yield Point. in Working Stress Design, the Design Strength Is Calculated Such That the Stress in the Material Is Restrained to Its Yield Point, Under Which the Material Follows Hooke's Law, and Hence the Term "Elastic" Is Used.

Maximum Permissible Stress in Steel =Σst. Maximum Stress in Equivalent Concrete Area at the Level of Steel= \Frac{\Sigma _{St}}{M} Note: 1. the Suffix Cbc in Σcbc Stands for Permissible Stress in Concrete in Bending Compression. the Suffix St in Σst Stands for Permissible Stress in Steel in Tension.

What Is the Factor of Safety in Tension in Working Stress Method?

In Wsm, the Load Factor of Safety Is Considered as '1'. 2. in Lsm, the Load Factor of Safety Is Considered as '1.5'.

What Is Difference Between Lsm and Wsm?

The Cardinal Difference Between Working State Method (Wsm) and Limit State Method (Lsm) Is: Wsm Is an Elastic Design Method Whereas Lsm Is a Plastic Design Method.

What Are the Limitation of Working Stress Method?

Limitations of Working Stress Method:

What Is the Purpose of Reinforcement in Prestressed Concrete?

1. to Improve the Resistance of the Member to the Dead and Live Loads. 2. to Modify the Behavior of the Member or Structure in Such a Way So as to Make It More Suitable for Its Intended Purpose.

What Is Poisson's Ratio for Concrete?

The Poisson's Ratio of Concrete Is 0.1 to 0.2.

Why Is Poisson's Ratio Always Positive?

Poisson's Ratio Is Usually Positive Since Most Common Materials Get Narrower in the Opposite or Cross Direction When Stretched. Most Materials Resist Changes in Volume, as Defined by the Bulk Modulus K or Also Known as B, More Than Changes in Shape, as Determined by the Shear Modulus G.

Why Modular Ratio Is Used in Working Stress Method?

By Chloe Bennett

• Oct 8, 2026 • 6 min read

Why Modular Ratio Is Used in Working Stress Method?

Direct Answer • Key Takeaway

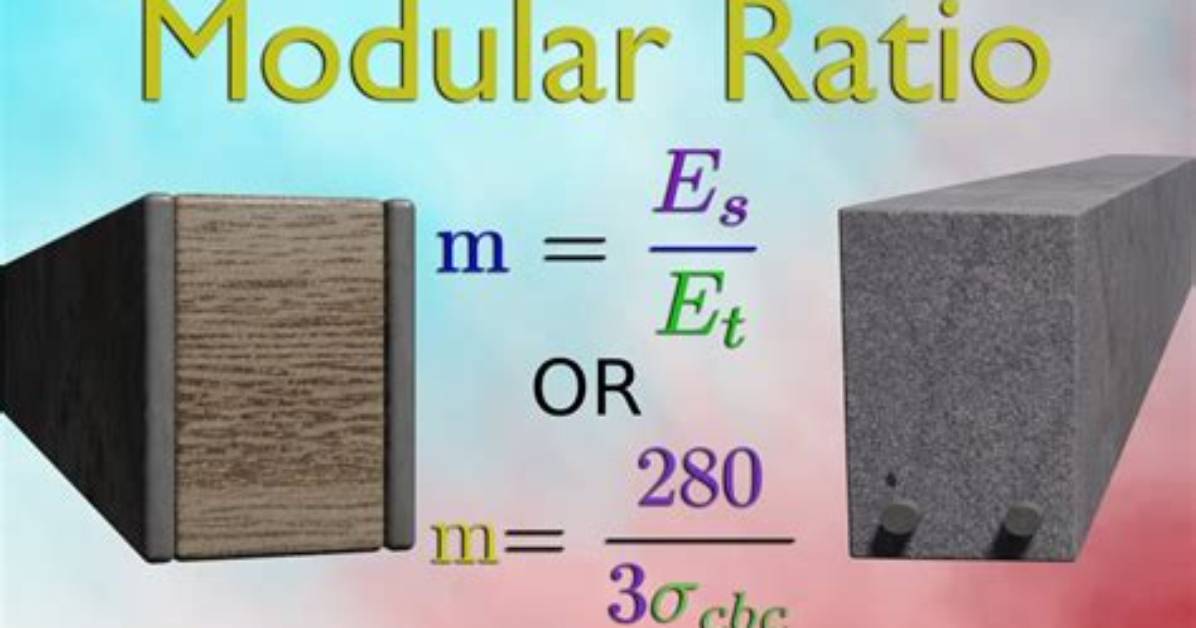

Explanation: Modular Ratio: in the Case of Working Stress Method of Analysis, the Composite Section of Reinforced Concrete Is Transformed into an Equivalent Section of Single Material of Concrete. for This, We Need to Define Modular Ratio Which Is the Ratio of Elastic Modulus of Steel to Concrete.
